NEW QUESTION # 154
On the switch, which VLANs can be deleted by using the undo command? (Multiple choice)
- A. vlan 4094
- B. vlan 1024
- C. vlan 2
- D. vlan 1
Answer: A,B,C
NEW QUESTION # 155

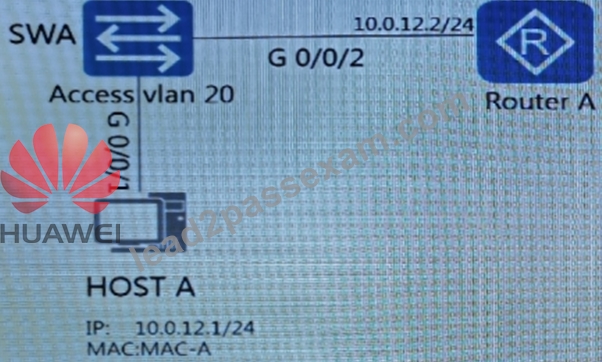

As shown in the figure below, the router uses a sub-interface as the gateway of the host. The IP address of the gateway is 10.0.12.2. Which of the following commands can achieve this requirement? (Multiple choice)
- A. Interface GigabitEthernet0/0/0.10 Dotlq termination vid 10 ip address 10.0.12.2 255.255.255.0 Arp broadcast enable #
- B. Interface GigabitEthernet0/0/0.20 Dotlq termination vid 20 ip address 10.0.12.2 255.255.255.0 Arp broadcast enable #
- C. Interface GigabitEthernet0/0/0.10 Dotlq termination vid 20 ip address 10.0.12.2 255.255.255.0 Arp broadcast enable #
- D. Interface GigabitEthernet0/0/0.20 Dotlq termination vid 10 ip address 10.0.12.2 255.255.255.0 Arp broadcast enable #
Answer: B,C
NEW QUESTION # 156
Which of the following options are configured in a Layer 2 ACL? (Multiple choices)
- A. rule 10 permit 12-protoco1 arp
- B. rule 15 permit vlan-id 100
- C. rule 20 permit source-mac 0203-0405-0607
- D. rule 25 permit source 192.168.1.1 0.0.0.0
Answer: B,C
NEW QUESTION # 157

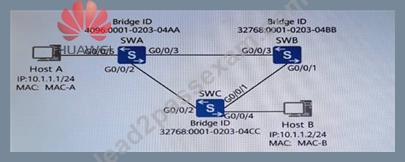

As shown in the network below, all switches enable STP protocol. Disable SWA's G0/0/2 port configuration BPDU sending function, SWC G0/0/1 re-converges to become the root port, about this process, which of the following statements are correct? (Multiple Choice)
- A. SWC sends TCN BPDU message to SWB
- B. SWB forwards TCN BPDU to SWA
- C. SWB sends configuration BPDU with TCA set to SWC
- D. SWA sends configuration BPDU with TC set
Answer: A,B,C,D
NEW QUESTION # 158
On the VRP platform, what is the role of the command "interface vlanit <vlan-id>" ?
- A. Configure VLAN for a port
- B. Create or enter VLAN virtual interface view
- C. No such command
- D. Create a VLAN
Answer: B
NEW QUESTION # 159
Which of the following statements about VLANIF interfaces are correct?
- A. Different VLANIF interfaces can use the same IP address
- B. VANIF interface does not need to learn MAC address
- C. VLANIF interface is a three-layer interface
- D. VLANTF interface has no MAC address
Answer: C
NEW QUESTION # 160
VLAN 4095 cannot be created on Huawei switches, and VLAN 1 cannot be created.
- A. TURE
- B. FALSE
Answer: A
NEW QUESTION # 161
What kind of message does the OSPF protocol use to discover and maintain neighbor relationships?
- A. DD
- B. LSR
- C. HELLO
- D. LSU
Answer: C
NEW QUESTION # 162
The Backup ports in RSTP may alternatively failed root port.
- A. False
- B. True
Answer: A
NEW QUESTION # 163
Which of the following is not the reason for RSTP improving the convergence speed?
- A. Forward Delay canceled
- B. Introduction of edge ports
- C. P/A mechanism
- D. Fast switching of the root port
Answer: A
NEW QUESTION # 164
When the host frequently moves, which VLAN division method is most appropriate?
- A. Based on AC address division
- B. Based on strategy division
- C. Based on port division
- D. Based on IP subnet division
Answer: D
NEW QUESTION # 165
By default, it takes at least 30s for the port status in the STP protocol to change from Disabled to Forwarding.
- A. False
- B. True
Answer: B
NEW QUESTION # 166
The host uses the IP address 192.168.1.2 to access the Internet, which must go through NAT.
- A. TURE
- B. FALSE
Answer: B
NEW QUESTION # 167

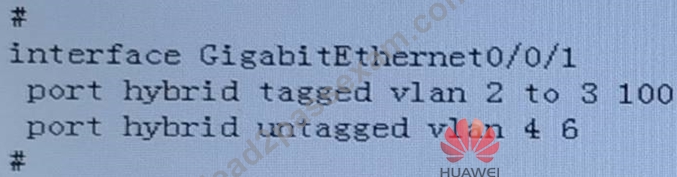

The configuration information of a certain port of the switch is shown in the figure, then the port will strip off the VLAN TAG when sending data frames carrying which VLAN?
- A. 4.5.6
- B. 4.6
- C. 1.4.6
- D. 1.4.5.6
Answer: C
NEW QUESTION # 168
Which of the following parameters is not included in the configuration BPDU of the STP protocol?
- A. Port ID
- B. Root ID
- C. VLAN ID
- D. Bridge ID
Answer: C
NEW QUESTION # 169
Which of the following statement about static routing in Huawei equipment is wrong?
- A. When the priority of the static route is 0, the route will definitely be preferred.
- B. The range of the static route priority value is 1-255
- C. The cost value (Cost) of the static route cannot be modified.
- D. The default value of the static route priority is 60
Answer: B
NEW QUESTION # 170
All interfaces of the router belong to the same broadcast domain.
- A. False
- B. True
Answer: A
NEW QUESTION # 171
Using the ACL shown in the figure on the router RTA to match routing entries, which of the following entries will be matched? (Multiple choice)
- A. 172.16.1.1/32
- B. 172.16.1.0/24
- C. 172.18.0.0/16
- D. 192.17.0.0/24
Answer: A,C
